Product Code: 5075
Brand: Time Electronics
Reviews:
0
0.00₴
Ex Tax:
0.00₴
Specifications:
(See all)
Additional features

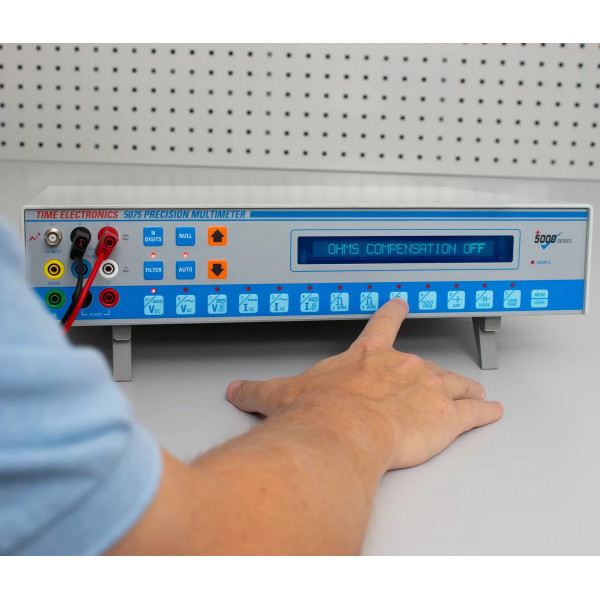

N Digits / Null / Auto Ranging / Filter / Internal Temperature / Ohms Compensation / Diode / Zener Diode Test / Self Test Reset / Max – Min / Peak Hold / Component Test / PRT Temp / Dual Display / Analogue Filter
/ Auto Dynamic Filter / Continuity / Sample Beep / Internal Date / Time / Internal Temp / Remote Control
/ Scanner Option
Additional options
9726 Low Thermal EMF 10 Channel Scanner / 9728 19" Universal Rack Mount Kit / ECFLA EasyCal Full License (discounted price when purchased with 5075) / 9794 GPIB to USB Adaptor / C162 Traceable calibration certificate (Factory) / C130 Accredited calibration certificate (ISO 17025)
Capacitance
0 to 30 nF (0.2 % + 20 pF / 0.25 % + 20 pF) / 0 to 300 nF (0.2 % + 200 pF / 0.25 % + 200 pF) / 0 to 3 μF (0.2 % + 2 nF / 0.25 % + 2 nF) / 0 to 30 μF (0.2 % + 20 nF / 0.25 % + 20 nF) / 0 to 300 μF (0.2 % + 200 nF / 0.25 % + 200 nF)
Current AC
0 to 30 μA (0.1 % + 8 nA / 0.2 % + 10 nA) / 0 to 300 μA (0.1 % + 80 nA / 0.2 % + 100 nA) / 0 to 3 mA (0.1 % + 800 nA / 0.2 % + 1 μA) / 0 to 30 mA (0.1 % + 8 μA / 0.2 % + 10 μA) / 0 to 300 mA (0.1 % + 80 μA / 0.2 % + 100 μA) / 0 to 3 A (0.15 % + 1 mA / 0.2 % + 1 mA) / 0 to 30 A (0.15 % + 10 mA / 0.2 % + 10 mA)
Current DC
0 to 3 μA 0 to10 μA (150 + 200 pA / 200 + 250 pA) / 0 to 30 μA 0 to 100 μA (75 + 1 nA / 100 + 1 nA) / 0 to 300 μA 0 to 1 mA (75 + 10 nA / 100 + 10 nA) / 0 to 3 mA 0 to 10 mA (75 + 100 nA / 100 + 100 nA) / 0 to 30 mA 0 to 100 mA (75 + 1 μA / 100 + 1 μA) / 0 to 300 mA 0 to 1 A (150 + 10 μA / 200 + 10 μA) / 0 to 3 A 0 to 10 A (500 + 200 μA 750 + 200 μA) / 0 to 30 A (500 + 2 mA / 750 + 2 mA)

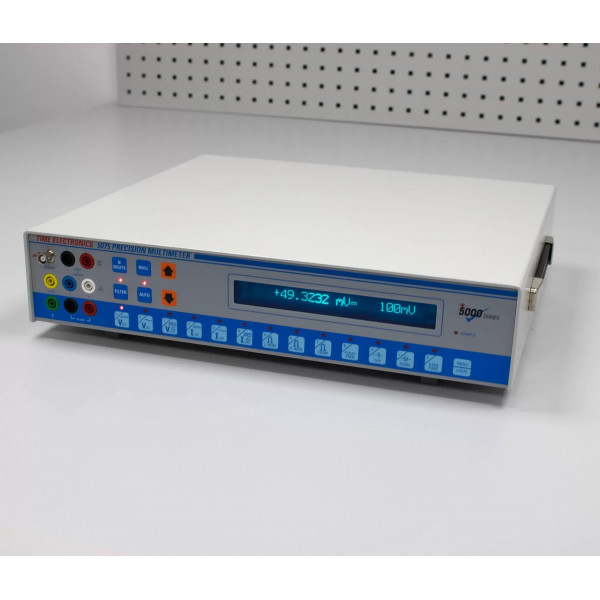

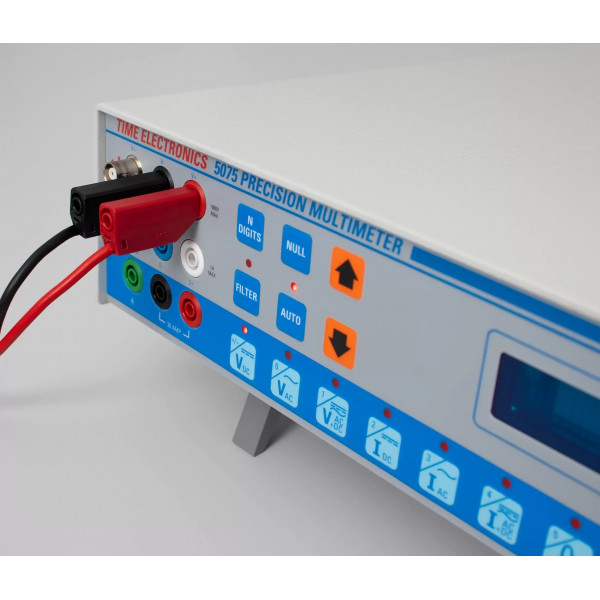

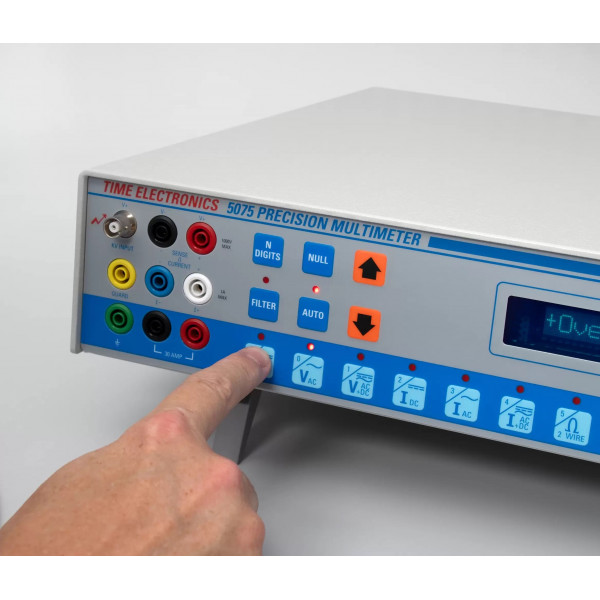

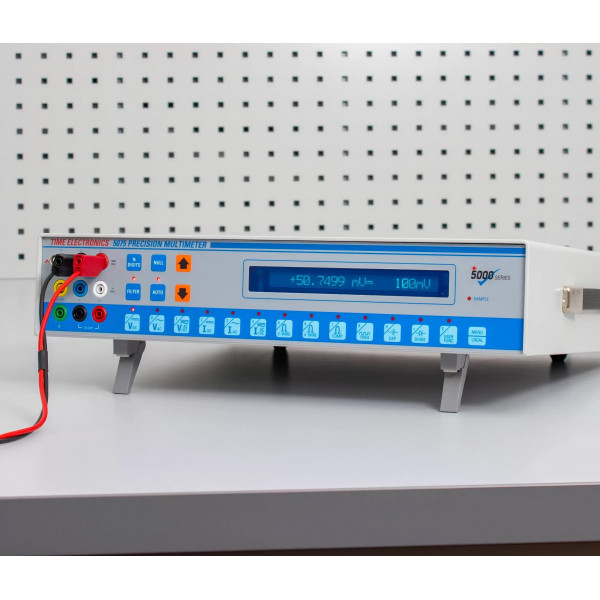

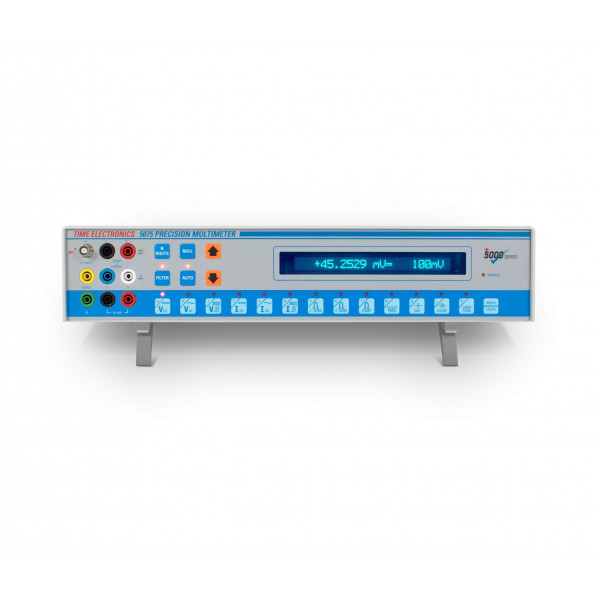

A benchtop digital multimeter that combines high performance and accuracy with simple operation. The 5075 measures from nanovolts to 10 kV, from picoamps to 30 Amps, from nano-ohms up to 1 GΩ, and from picofarads to 300 μF.
It is ideal for users requiring a cost-effective multimeter with multiple functions and exceptional resolution and accuracy up to 7.5 digits. This makes the 5075 is a versatile solution to essential laboratory calibration and verification. It covers a wide range of applications with excellent measurement capabilities, whilst maintaining reliability and long-term performance.
Options include a low thermal, 10-channel scanner that allows multiple inputs to be displayed or compared without the need for a separate switching arrangement. Software driven calibration can be performed by connecting the 5075 to a PC/laptop installed with EasyCal software. GPIB interface is standard with USB optional via an adaptor.
Main characteristics
Capacitance
0 to 30 nF (0.2 % + 20 pF / 0.25 % + 20 pF) / 0 to 300 nF (0.2 % + 200 pF / 0.25 % + 200 pF) / 0 to 3 μF (0.2 % + 2 nF / 0.25 % + 2 nF) / 0 to 30 μF (0.2 % + 20 nF / 0.25 % + 20 nF) / 0 to 300 μF (0.2 % + 200 nF / 0.25 % + 200 nF)
Current AC
0 to 30 μA (0.1 % + 8 nA / 0.2 % + 10 nA) / 0 to 300 μA (0.1 % + 80 nA / 0.2 % + 100 nA) / 0 to 3 mA (0.1 % + 800 nA / 0.2 % + 1 μA) / 0 to 30 mA (0.1 % + 8 μA / 0.2 % + 10 μA) / 0 to 300 mA (0.1 % + 80 μA / 0.2 % + 100 μA) / 0 to 3 A (0.15 % + 1 mA / 0.2 % + 1 mA) / 0 to 30 A (0.15 % + 10 mA / 0.2 % + 10 mA)
Current DC
0 to 3 μA 0 to10 μA (150 + 200 pA / 200 + 250 pA) / 0 to 30 μA 0 to 100 μA (75 + 1 nA / 100 + 1 nA) / 0 to 300 μA 0 to 1 mA (75 + 10 nA / 100 + 10 nA) / 0 to 3 mA 0 to 10 mA (75 + 100 nA / 100 + 100 nA) / 0 to 30 mA 0 to 100 mA (75 + 1 μA / 100 + 1 μA) / 0 to 300 mA 0 to 1 A (150 + 10 μA / 200 + 10 μA) / 0 to 3 A 0 to 10 A (500 + 200 μA 750 + 200 μA) / 0 to 30 A (500 + 2 mA / 750 + 2 mA)
Frequency measurement
0 to 100 kHz (10 + 1 / 12 + 1)
Resistance
0 to 30 mΩ 0 to 100 mΩ (70 + 2 μΩ / 100 + 2.5 μΩ) / 0 to 300 mΩ 0 to 1 Ω (40 + 10 μΩ / 60 + 15 μΩ) / 0 to 3 Ω 0 to 10 Ω (30 + 80 μΩ / 40 + 100 μΩ) / 0 to 30 Ω 0 to100 Ω (20 + 600 μΩ / 30 + 800 μΩ) / 0 to 300 Ω 0 to 1k Ω (20 + 6 mΩ/ 30 + 8 mΩ) / 0 to 3k Ω 0 to 10 kΩ (20 + 60 mΩ / 30 + 80 mΩ) / 0 to 30 kΩ 0 to 100 kΩ (30 + 600 mΩ / 45 + 800 mΩ) 0 to 300 kΩ 0 to 1 MΩ (60 + 8 Ω / 90 + 10 Ω) / 0 to 3 MΩ 0 to 10 MΩ (100 + 100 Ω / 150 + 120 Ω) / 0 to 30 MΩ 0 to 100 MΩ (750 + 10 kΩ / 1000 + 10 kΩ) / 0 to 300 MΩ 0 to 1 GΩ (0.5 % + 1 MΩ / 0.75 % + 1 MΩ)
Voltage AC
0 to 30 mV (0.05 % + 4 μV / 0.06 % + 4 μV) / 0 to 300 mV (0.05 % + 40 μV / 0.06 % + 40 μV) / 0 to 3 V (0.05 % + 400 μV / 0.06 % + 400 μV) / 0 to 30 V (0.05 % + 4 mV / 0.06 % + 4 mV) / 0 to 300 V (0.15 % + 0.1 V / 0.2 % + 0.12 V) / 0 to 3 kV (0.15 % + 1 V / 0.2 % + 1.2 V)
Voltage DC
0 to 3 mV 0 to 10 mV (22 + 80 nV / 30 + 80 nV) / 0 to 30 mV 0 to 100 mV (22 + 800 nV / 30 + 800 nV) / 0 to 300 mV 0 to 1 V (22 + 8 μV / 12 + 6 μV / 30 + 8 μV / 18 + 6 μV) / 0 to 3 V 0 to 10 V (12 + 60 μV / 18 + 60 μV) / 0 to 30 V 0 to 100 V (20 + 600 μV / 30 + 600 μV) / 0 to 300 V 0 to 1 kV (22 + 8 mV / 30 + 8 mV) / 0 to 3 kV 0 to 10 kV (250 + 1 V / 350 + 1.2 V / 350 + 1.2 V / 500 + 1.5 V)
Power system
Power
110/220/240 V AC, 50/60 Hz
Specifications
Warm up
2 hours to full accuracy
Additional features
Additional features
N Digits / Null / Auto Ranging / Filter / Internal Temperature / Ohms Compensation / Diode / Zener Diode Test / Self Test Reset / Max – Min / Peak Hold / Component Test / PRT Temp / Dual Display / Analogue Filter
/ Auto Dynamic Filter / Continuity / Sample Beep / Internal Date / Time / Internal Temp / Remote Control
/ Scanner Option
Temperature measurement parameters
Measurement range
PRT (Pt100) -200 to +600 °C (0.05 °C / 0.06 °C)
Interface
Interface
GPIB / USB
Environmental parameters
Working temperature
0 to 40 °C
Storage temperature
-20 °C to 60 °C
Working humidity
0 to 30 °C < 90 %. 30 to 40 °C < 70 %
Physical parameters
Size
W 423 x H 89 x D 415 mm
Weight
8.5 kg
Completeness
Additional options
9726 Low Thermal EMF 10 Channel Scanner / 9728 19" Universal Rack Mount Kit / ECFLA EasyCal Full License (discounted price when purchased with 5075) / 9794 GPIB to USB Adaptor / C162 Traceable calibration certificate (Factory) / C130 Accredited calibration certificate (ISO 17025)
Package contents
User manual, GPIB cable, test leads, power lead
