Product Code: LSG 3E
Brand: Megger
Reviews:
0
Found cheaper?
0.00₴
Ex Tax:
0.00₴
Buy in 1 click:
Specifications:
(See all)
Peculiarities
Locating high-resistance faults in high and low voltage cables
Measuring method
Arc reflection method
Maximum voltage of impulse batteries
32 kV
Internal impulse battery voltage
640 Ws/2 kV
Stabilization time
≈ 20 ms

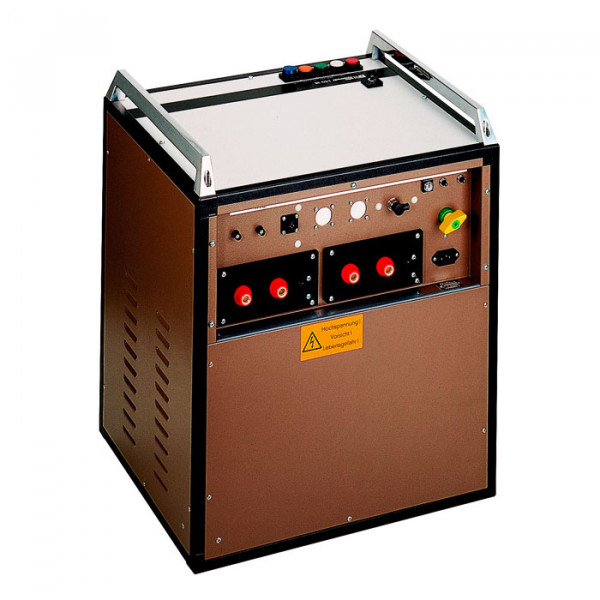

The light arc stabilizer LSG 3E is designed for short-term stabilization of the light arc on a high-resistance fault in a cable line. The excitation of the light arc is carried out using a shock wave generator up to 32 kV. The LSG 3-E works with the active prelocalization method, which means that it has its own voltage source and energy storage. It delivers a pulse with a voltage of 2 kV and a power of 640 J into an excited light arc. The 2 kV voltage source can also be used without an additional pulse generator for preliminary and precise localization of faults with voltages up to 2 kV.
Technical data
Measuring method
Arc reflection method
Maximum voltage of impulse batteries
32 kV
Internal impulse battery voltage
640 Ws/2 kV
Stabilization time
≈ 20 ms
Pause
20 s
Weight
47 kg
Power consumption
350 VA / 2 sec
100 VA / "ready to connect" (red light active)
Power supply
110V/220V/230V/240V
50Hz / 60Hz
Dimensions
560 x 520 x 430 mm
Additional features
Peculiarities
Locating high-resistance faults in high and low voltage cables
