Specifications: (See all)

Peculiarities

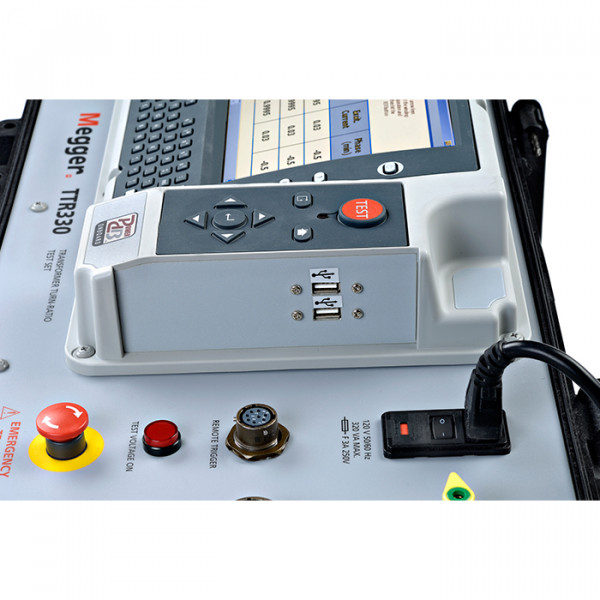

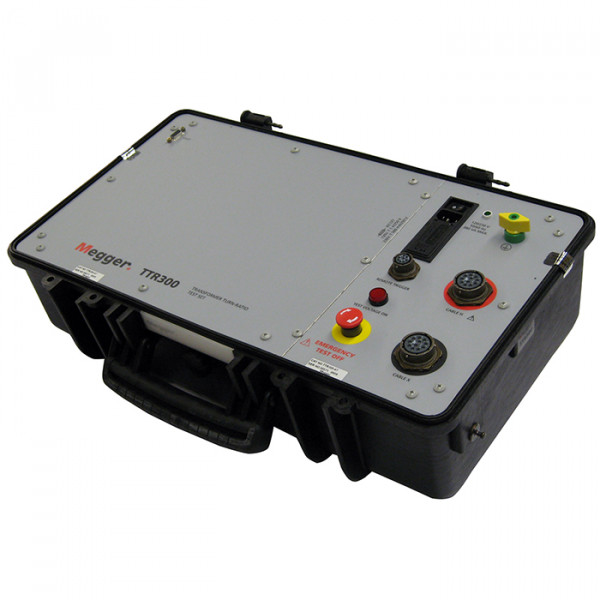

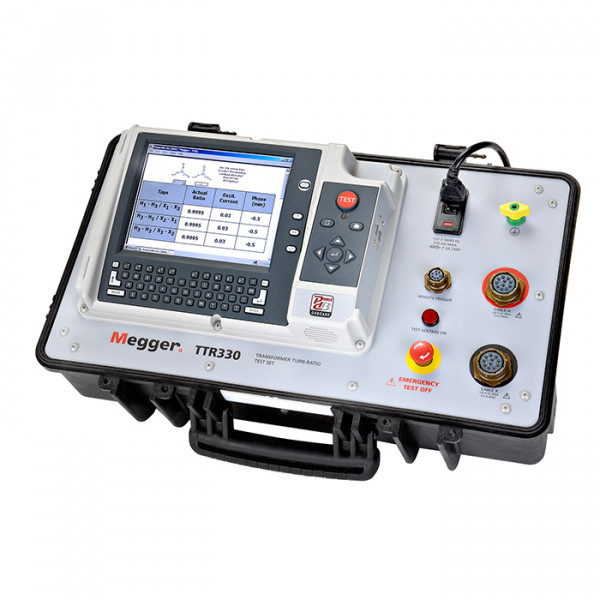

TTR300: • Upgrade to TTR310, TTR320 or TTR330 models without violating calibration • Ability to save test results to internal memory in open XML format via PowerDB LITE • Fast download of test results via RS-232 serial port TTR310: • Fully automatic control (autonomous or remote control) • Possible upgrade to TTR330 or TTR320 without violating calibration • Built-in RS-232 port and optional thermal paper printer for printing test results in the field without using an external computer • Ability to save test results to internal memory in open data format for direct entry into Excel or XML format via PowerDB LITE TTR320: • Fully automatic control (autonomous or remote control) • Possible upgrade to TTR330 without violating calibration • Graphical user interface provides automatic configuration and control through an easy-to-read screen • Possibility to save test results in open XML format, internal memory or external USB storage device • Built-in RS-232 port and optional thermal paper printer provide printing of test results without the use of external computer • Bright color 5.7 VGA display TTR330: • Fully automatic control (standalone or remote control) with user interface via customizable on-screen test forms • Installed software PowerDB ONBOARD allows you to study and analyze data without using an external computer • Built-in USB port and optional 8.5‖ x 11‖ thermal paper printer print test reports without the need for an external computer • Built-in ability to save test results in open XML format, either internally or to an external USB storage device • 8.4 VGA color display

Description

The TTR300 series instruments are specially designed for the diagnosis of three-phase transformers. They are designed to measure the transformation ratios of power, instrumentation and distribution transformers in substations and in industrial conditions. The rugged and reliable design allows these instruments to be used in harsh environments. The wires are specially designed to provide the flexibility needed in cold weather conditions.

The TTR300 series is ideal for use in the manufacture and testing of transformer insulation. Their unique test methods and data storage capability allows the operator to prepare and test complex three-phase transformers (with stacked transformer output switches and feed-through current transformers) in significantly less time than other TTR series instruments. This test also contains pass/fail test limits for individual coefficients. The TTR300 series also measures the phase deviation of a transformer - primary versus secondary. This capability quickly indicates transformer faults such as partially shorted turns or core damage. This type of measurement is also useful for detecting phase errors in all types of power and current transformers.

Each device comes with a remote control switch for one person testing. This allows the operator to quickly test transformers with output switching under load.
