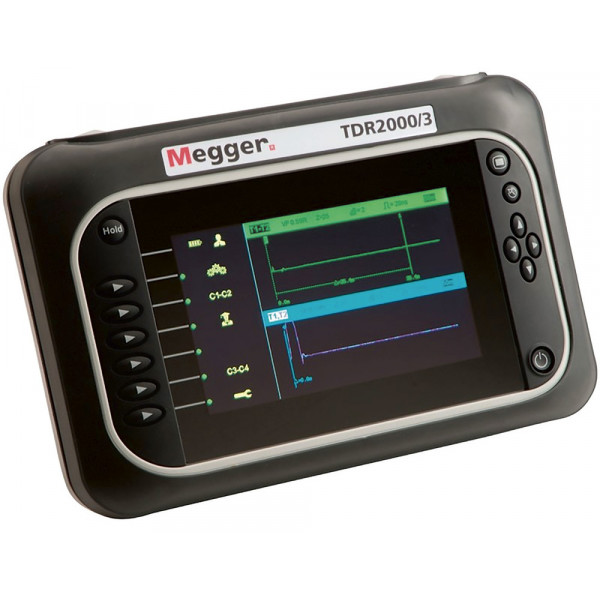

The Megger TDR2000/3 reflectometer is designed to check metal cables for faults. It can be used both indoors and outdoors, the degree of protection against external influences is IP54. The large display of the device has a backlight, thanks to which it is possible to work under any lighting conditions. The model is powered by a lithium-ion battery, the charge of which is enough for 12 hours of operation.
The TDR2000 has a maximum resolution of 0.1 m and a maximum range of 20 km, depending on the selected speed factor and cable type. Five output impedance options are available (25, 50, 75, 100, 25 ohms). Auto impedance matching and speed ratio adjustment functions are available from 0.2 to 0.99.
