TELEFLEX SX portable reflectometer for fault location systems
TELEFLEX SX portable reflectometer for fault location systems
TELEFLEX SX portable reflectometer for fault location systems TELEFLEX SX portable reflectometer for fault location systems
Product Code: TELEFLEX SX
Brand: Megger
Reviews: 0
Found cheaper?
0.00₴
Ex Tax: 0.00₴
DataSheet
Buy in 1 click:
Specifications: (See all)
Certificati
IP 65 closed, IP 54 open
Storage temperature
-20 °C ... +60 °C
Measuring range
20 m ... 160 km at v/2 = 80 m/µs
Permission
0.1 m @ v/2 80 m/µs, 1.0 cm @ v/2 < 40 m/µs
Pulse amplitude
5 ... 50 V
Description

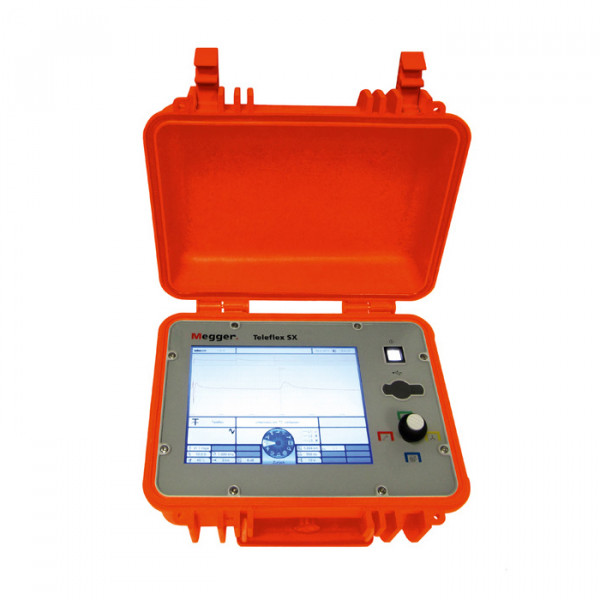

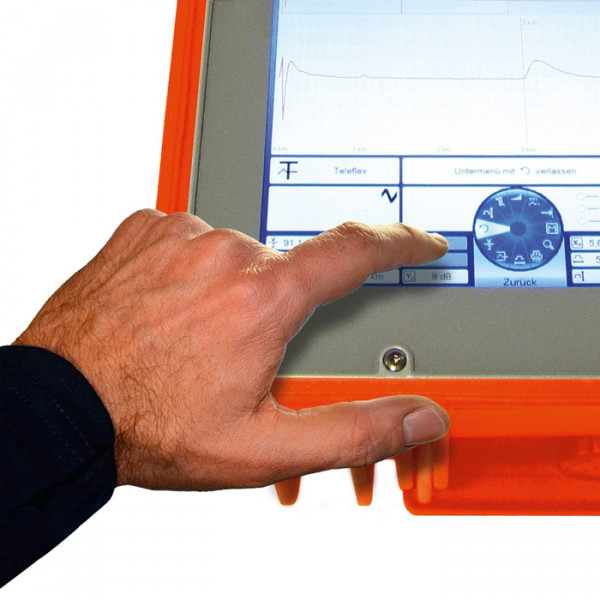

With the new Teleflex SX reflectometer, the excellent functionality of the successful Teleflex VX has been translated into a smaller and more convenient format. The Teleflex SX OTDR is controlled via a new touch screen and proven functional rotary knob. To present the measurement results, a 10.4-inch contrast, bright display is integrated into the reflectometer.

The Teleflex SX reflectometer is specially designed to quickly locate faults in power cables. easyGO control has reduced the number of work steps to the most necessary and in most cases is carried out automatically.

• ARMslide technology with 15 measurements per ARM high voltage pulse • ProRange function for optimal representation of distant details • Supports all existing cable fault pre-localization methods • Fully automatic presentation of cable end and fault location • Compatible with all cable fault detection systems


Specifications
Technical data
Storage temperature
-20 °C ... +60 °C
Measuring range
20 m ... 160 km at v/2 = 80 m/µs
Permission
0.1 m @ v/2 80 m/µs, 1.0 cm @ v/2 < 40 m/µs
Pulse amplitude
5 ... 50 V
Pulse width
20 ns ... 10 µs
Sampling rate
up to 400 MHz (true sampling rate)
Gain
- 37 ... +37 dB
Operating temperature
-10 °C ... +50 °C
Display
10.4" TFT color XGA 1024x768, capacitive touch screen, 600 sd/m2, CCFL backlight
Dynamic range
>80dB
ARM flip-flop
Auto-negotiation with ΔU flip-flop
Interface
Ethernet, USB, BNC, CAN (LON option)
ARMslide
15 measurements per ARM pulse
Memory
4 GB mSATA for program and data
Weight
10 kg
Dead zone
no
Dielectric strength
< 400 V, operation only with crossover filter
Power supply
battery, 110 ... 240 V, 50/60 Hz, 50 VA, 12 V external
Dimensions
362 x 195 x 195 mm (option 19“-pull-out version, 6 HE)
Environmental parameters
Certificati
IP 65 closed, IP 54 open
