SURGEFLEX 40

All about product
Specification
Reviews
0
Questions
0
Product Code: SURGEFLEX 40
Brand: Megger
Reviews: 0
Found cheaper?
0.00₴
Ex Tax: 0.00₴
DataSheet
Buy in 1 click:
Specifications: (See all)
Insulation measurement Voltage range
range 1000V and 5000V 1 kΩ, 1 MΩ, 100 MΩ
Test DC
0.... 40 kV DC
Leakage current
0....1/10/100 mA with automatic range setting
Breakdown detection
0.... 40 kV
Ignition
0 ... 8 kV, 0.7 A; 0...20 kV, 0.1 A
Description

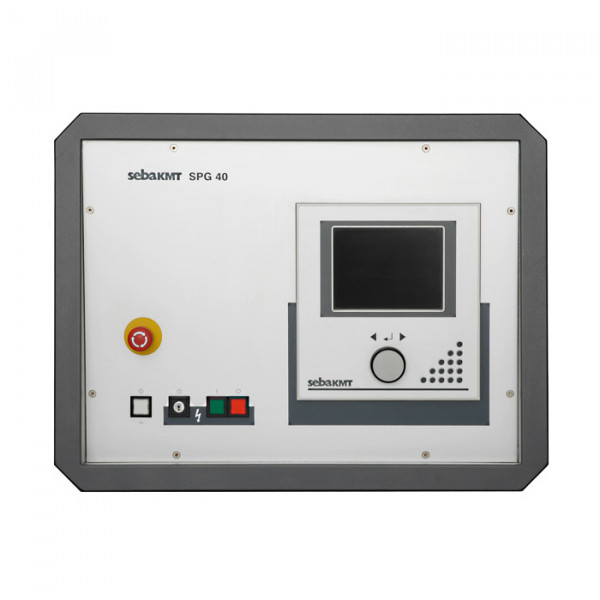

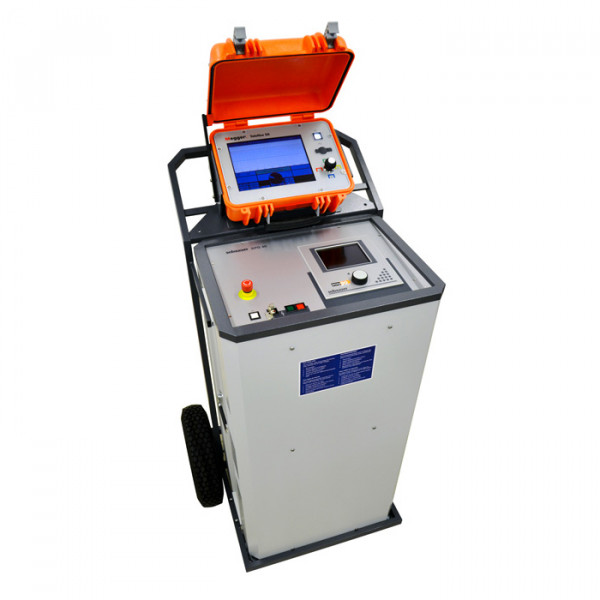

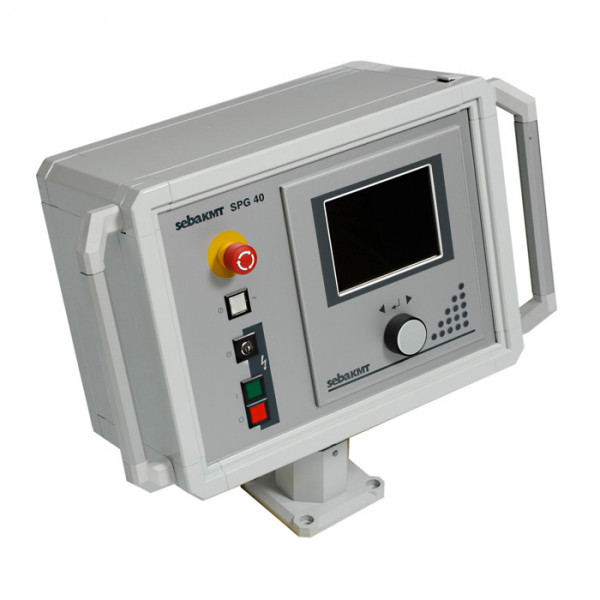

The electrical laboratory system is controlled by a connected T 30-E reflectometer or via an integrated control panel. All functions of the system are controlled by a knob-button in the simplest way.

The user menu allows even an inexperienced user simple and intuitive operation for successful fault localization. At the same time, the highest requirements for the safety of working with the installation are observed.

Advantages: Rectified voltage test up to 40 kV Integrated methods ARM, ICE and Decay Control via VGA display and one knob-button High impulse energy for acoustic pinpointing 1000 or 2000 J Surge energy levels for medium voltage cables 0 ... 12.5/25 kV or 0 ... 16/32 kV Surge energy levels for low voltage cables 0 ... 3/6 kV or 0 ... 4/8 kV Integrated security system


Specifications
Technical data
Insulation measurement Voltage range
range 1000V and 5000V 1 kΩ, 1 MΩ, 100 MΩ
Test DC
0.... 40 kV DC
Leakage current
0....1/10/100 mA with automatic range setting
Breakdown detection
0.... 40 kV
Ignition
0 ... 8 kV, 0.7 A; 0...20 kV, 0.1 A
Operating temperature
-10 ° С .... +50 ° С
Upper voltage ranges
0....12.5/25 kV or 0...16/32 kV
Lower ranges voltage (optional)
0 ... 4 kV; 0 ... 8 kV 0 ... 3 kV; 0 ...6 kV
Display
VGA
Pulse power
1000 J in each range (optional 2000 J for the built-in model)
Subsequence pulses
3...10 sec and single pulse
Sheath damage search
0 ... 5 kV and 0 ... 10 kV
DC cycle time
1:3; 1:4; 1:6 (sec)
High Voltage Pre-Location Methods (with optional Teleflex)
ARM, ICE Current Pulse Method, Decay Voltage Isolation
Weight
approx. 116 kg (incl. optional voltage ranges)
Power consumption
1.7 kVA max.
Power supply
230 V; 50/60Hz (Optional 110KV)
Dimensions
520 x 430 x 1050 mm
